D & R

D & R Artikelliste

AIRLITE-USB

AIRLITE-USB 8 channel triple input radio ON-Air / Production mixer with 3x Mic, 4x USB and 1x VOIP.

AES3 / EBU stereo digital output option

Studio remote for Airlite for dropthroug mounting

ON-AIR WARNING LIGHT display for AIRLITE | AIRMATE-USB | AIRENCE-USB | AIRLAB | AXUM (incl power adapter)

USB audio Isolator for eliminating digital (usb) background noise.

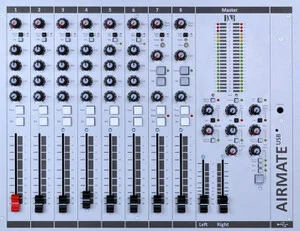

AIRMATE-USB

AIRMATE-USB 8 channel triple input (24 inputs) radio ON-Air / Production mixer with 2x built in Hybrids and 2x USB interfacing

AES3 / EBU stereo digital output option

Airmate-USB RIAA phono pre-amp for stereo line input

Airmate Sparepartskit (faders, switches, pots, ic's etc. etc.).

ON-AIR WARNING LIGHT display for AIRMATE-USB | AIRENCE-USB | AIRLAB | AXUM (incl power adapter)

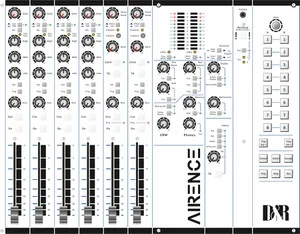

AIRENCE-USB

AIRENCE-USB MAIN UNIT 6 channel triple input radio On-Air / Production console with 4x USB and 2x Hybrids

AIRENCE-USB EXTENSION UNIT 6 channel triple input radio On-Air / Production console

AIRENCE-USB Sparepartskit (faders, switches, pots, ic's etc. etc.)

Redundant Power supply 36 Volts 60 watt

ON-AIR WARNING LIGHT display for AIRMATE-USB | AIRENCE-USB | AIRLAB | AXUM (incl power adapter) .

Studio remote for Airence for dropthrough mounting

USB audio Isolator for eliminating digital (usb) background noise.


AIRLAB

Airlab-DT loaded with 6 Triple Inputs + 4 USB Triple Inputs + 2 Telco modules, 2 blanks, 1x Control Module + Software metering special set price.


Airlab-DT 16-frame (for 16 mod. incl. master section / Power Supply / Metersoftware

Airlab USB Control Module for Play-out systems.

Airlab Triple EQ,  (Mic/stereo line/stereo line) VCA controlled.

Airlab Triple NON EQ input module  (Mic/stereo line/stereo line) VCA controlled

Airlab USB module MIc/Stereo line/Stereo USB with EQ

Airlab Telco module Q (Mic/stereo line/stereo line) VCA controlled. .

Airlab Triple DIGITAL input module (Mic/AES3/s/p-dif) VCA controlled.

Airlab Blank module .

RIAA phono pre-amp for stereo line input.

Airlab Chipcard

Airlab Output transformer LL5402.

Airlab Program/Sub mono output driver (optional)

Studio remote for Airlab for dropthrough mounting

Airlab Spareparts-kit

ON-AIR WARNING LIGHT display AIRLAB (incl power adapter).


LYRA

Lyra compact digital broadcast system, 1x4 fader control surface + I/O module

Lyra compact digital broadcast system, 2x4 fader control surface + I/O module

Lyra compact digital broadcast system, 1x8 fader control surface + I/O module

Lyra, 1x 4 fader control surface

Lyra, 1x 4 fader control surface EXTENDER

Lyra, 1x 8 fader control surface

Lyra I/O module

Lyra Spare Parts Kit Control Surface

Lyra Spare Parts Kit I/O Rack

Lyra CobraNet™ CM-2 PCB, Offering 8 extra mono inputs and 8 extra mono outputs

CMS (CobraNet Management Software) under Windows .

LYRA to break-out panel interface/converter


SIGNAL PROCESSORS

Telephone Hybrid-1 passive 9.5" unit

Telephone Hybrid Model TELCOM active 9.5" unit

Telephone Hybrid-2 active 19" unit.

Teleporter-3 with keyboard and record-out.(to be discontinued soon).

Timer/Counter/Clock.

Studio remote for announcer Airlab and AXUM version

PPM-260 Dual 60 segment high resolution stereo PPM meter (incl power supply and 9.5".

ON-AIR WARNING LIGHT display for AIRMATE-USB | AIRENCE-USB | AIRLAB | AXUM (incl power adapter) .

USB audio Isolator for eliminating digital background noise


SOFTWARE

Aircast radio Automation Software



AXUM SERIES

Axum with 12 motor faders in drop through version

Rack One with: 1x mic AD, 2x Line AD, 1 Line DA, 1x DD src, 1x Hybrid-4, 1x CRM.

Rack ONE has space for 8 more I/O cards, 4x breakoutpanels are included


 Axum with 12 motor faders in Frame-14, 1x Mic AD, 1x Line AD, 1x Line DA, 1x DD src, 1x CRM

Rack ONE has space for 10 more I/O cards, 3x breakoutpanels included



Axum with 16 motor faders in Frame-18, 2x Mic AD, 2x Line AD, 2x Line DA, 1x DD src, 1x CRM,

Rack ONE has space for 2 more I/O cards, 4x breakoutpanels are included


SOFTWARE

AXUM Version 3.0 upgrade including remote upload and support from D&R.

REMOTE application software to create a virtual control surface or remotely control an existing control surface in the system .


FRAMES (icl ETX interface built in) FOR CONTROL SURFACES


Frame-10 accepts 10 positions maximum  (8 faders + CRM)

Frame-14 accepts 14 positions maximum (12 faders + CRM)

Frame-18 accepts 18 positions maximum (16 faders + CRM)

Frame-22 accepts 22 positions maximum (20 faders + CRM)

Redundant power supply for Control Surface Frame.


CONTROL SURFACES for Frames

Drop through Fader section Broadcast (= 4 positions module).

Display 16 Character, 4 rotary Encoders, 8 pushbuttons, 4 Alps motor faders, CAN buss.



Drop through CRM /STUDIO section (= 2 positions module)1 Encoder, 4 Potentiometer, 54 pushbuttons,

Ledbar and card reader, CAN bus



Blank panel-2 (= 2 positions).

Blank panel-4 (= 4 positions


CONTROL SURFACES for Desktop Drop through mounting

Drop through Fader section Broadcast (= 4 positions module).

Display 16 Character, 4 rotary Encoders, 8 pushbuttons, 4 Alps motor faders, CAN buss.

Drop through CRM /STUDIO section (= 2 positions module)1 Encoder, 4 Potentiometer, 54 pushbuttons,

Ledbar and card reader, CAN bus


ETX Interface to connect Control Surfaces with rack-switcher

Studio Remote AXUM

ON-AIR WARNING LIGHT display for AIRMATE-USB|AIRENCE-USB |AIRLAB | AXUM (incl power adapater) 19" .


RACKS to accept I/O plug in cards

RACK  ONE 19" Rack 1x 3HE + Backplane for 21 I/O card/slot positions.

RACK TWO 19" Rack 2x 3HE + Backplane for 40 I/O card/slot positions


I/O PLUG IN CARDS

Rack Engine (always necessary)

Power Supply (3 slots) (always necessary)

MIC A/D RJ45 (4x mic, 8xGPIO).

Line A/D RJ45 (8xMono or 4xStereo, 8xGPIO).

Line D/A RJ45 (8xMono or 4xStereo, 8xGPIO).

CRM D/A RJ45 (2xStereo and 2xHeadphone, 8xGPIO).

D/D RJ45 (4xAES3 out/in  8xGPIO) with SRC (sample rate converter)

CobraNet card 16 mono in and 16 mono out

Telephone Hybrid analog (four Hybrids)

FireWire  (16 In, 16 Out).

DSP Audio processing (32x stereo channels, 64x inserts, 4x CRM/Studio/ FX) (max 4 per system)

Blanks (one slot I/O card front)


19" RACK I/O CONNECTOR PANELS (break out panels)

Mic  I/O   8x XLR Female input + 16x Remote + 6x jack out from 11x RJ45.

Line I/O 16x JACK in/output + 16x Jack remote from 8x RJ45

Line I/O 12x XLR Female input + 12x jack remote from 6x RJ45

Line I/O 12x XLR Male + 12x Jack remote from 6x RJ45

Line I/O   8x XLR Female, 4x Male XLR + 12x Jack Remote from 6x RJ45

Dig I/O  6x XLR Female, 6x Male XLR + 12x Jack Remote from 6x RJ45 .


STP CONNECTION CABLE RJ45-RJ45
(used between I/O Rack and Break Out panels)


Cat-6 SSTP (PIMF) LSZH cables RJ45-RJ45 0.50M

Cat-6 SSTP (PIMF) LSZH cables RJ45-RJ45 1.00M

Cat-6 SSTP (PIMF) LSZH cables RJ45-RJ45 2.00M

Cat-6 SSTP (PIMF) LSZH cables RJ45-RJ45 3.00M

Cat-6 SSTP (PIMF) LSZH cables RJ45-RJ45 5.00M

Cat-6 SSTP (PIMF) LSZH cables RJ45-RJ45 7.00M

Cat-6 SSTP (PIMF) LSZH cables RJ45-RJ45 10.00M

Cat-6 SSTP (PIMF) LSZH cables RJ45-RJ45 15.00M

Cat-6 SSTP (PIMF) LSZH cables RJ45-RJ45 20.00M

Ethernet Switch 8 port 1-/100mB


LIVE RECORDING SERIES

19" Frame with 8 mono Stabdard modules, 2 Subgroup modules and 3 blanks (8-4-2)

38 Frame with 28 mono de luxe, 4 stereo deluxe, 4 Subgroups and Master deluxe (32-8-2).

46 Frame with 32 mono de luxe, 4 stereo deluxe, 4 Subgroups, 4 \matrix modules and Master deluxe (32-8-2)


System parts

Vision 19" frame (for 13 mod.)incl. standard master and power-supply.

Vision 38-frame (for 37 mod.)incl. standard master and 19" Powersupply.

Vision 46-frame (for 45 mod.)incl. standard master and 19" powersupply.


Vision mono deluxe mic/line module

Vision stereo deluxe line/line module.

Vision RIAA correction PCB for stereo deluxe modules

Vision dual line module

Vision blind module set

Vision dual subgroup module

Vision matrix module.

Vision master deluxe module (for Aux 5-8)

Vision Power supply 2HE unit  (Optional Back up unit)

Vision meterbridge 2VU with 2 analog VU-meters for frame-19".

Vision meterbridge 4VU with 4 analog VU-meters for frame-19".

Vision meterbridge 6VU with 6 analog VU-meters for frame-30/38.

Vision meterbridge 8VU with 8 analog VU-meters for frame-30/38.

Vision meterbridge 10VU with 10 analog VU-meters for frame-46

Vision Spare Parts Kit.

Vision  faderstart option (ALPS micro-switch including cabling).


SIGNAL PROCESSORS

9,5" blank panel.

Mounting kit for mounting two 9,5" signal processors fitting 19" racks.

Dual 60 segment high resolution stereo led-bar (incl. power supply/housing)


FADERS & SWITCHES

Radiohm fader mono for Discom1, 300 series, 700-1 series, 200/Sixmix .

Radiohm fader stereo for Discom l, 300-1, 700-1

N-ALPS horizontal stereo lin cross-fader 60mm for Clubmix (45mm travel)

N-ALPS horizontal stereo log 60mm  fader for Clubmix/Orion.

N-ALPS vertical stereo log 60mm  fader for Airmate/Clubmate/Discom5.

N-ALPS vertical stereo log 100mm fader for Clubmate/Discom5.

K-ALPS stereo 100mm fader in 10K A (log curve).

K-ALPS mono  100mm fader in 10K B (lin curve)

Microswitch for K-ALPS fader  (for both 60mm and 100mm K-ALPS faders only).

including pcb with connector for K-Alps fader for AIRMATE and AIRENCE
